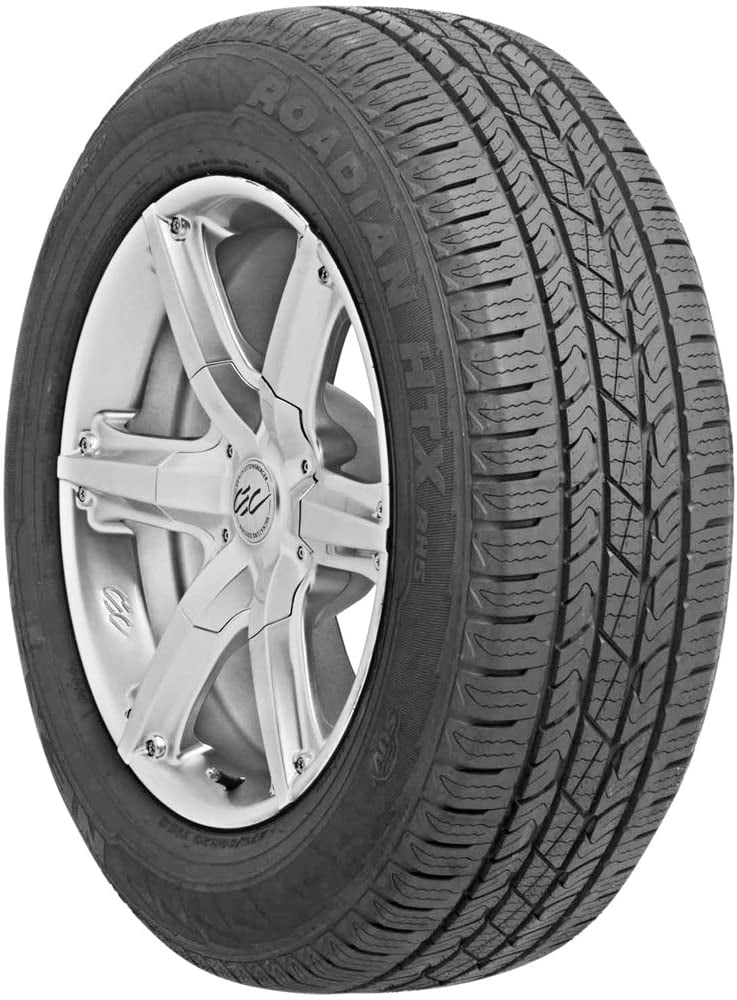

The Nexen Roadian HTX RH5 is an all-season highway-terrain tire for light trucks and SUVs. A reinforced shoulder block design improves cornering and handling, the center block adds grip and steering response, and four wide grooves drain water to reduce hydroplaning risk.
The 225/65R17 size is rated 102H for load and speed. It offers 11/32-inch tread depth, a 51 psi maximum inflation pressure, a UTQG rating of 640AA and an overall diameter of about 28.5 inches. This size carries a 65,000-mile treadwear warranty.
| Tire size | 225/65R17 |
|---|
| Tire load index | 102 |
|---|
| Tire speed rating | H |
|---|
| Tire load range | B |
|---|
| Tire season | All-Season |
|---|
| Tire terrain | Highway Terrain |
|---|
| Uniform tire quality grade (utqg) | 640 A A |
|---|
| Tire treadwear rating | 640 |
|---|
| Tire sidewall style | Black Sidewall |
|---|
| Tread depth | 11/32 |
|---|
| Overall diameter | 28.5 in |
|---|
| Manufacturer | Nexen Tire America |
|---|
| Tire width | 225 mm |
|---|
| Vehicle fitment type | Universal |
|---|
| Is run flat | N |
|---|
| Vehicle type | Car |
|---|
| Construction type | Radial |
|---|
| Electric vehicle tire | N |
|---|
| Wheel diameter | 17 in |
|---|
| Flotation tire | N |
|---|
| Maximum vehicle rim width | 8 in |
|---|
| Features | Wet or Dry, Low Maintenance, All-Weather |
|---|
| Items included | Tire |
|---|
| Minimum vehicle rim width | 6 in |
|---|
| Total count | 1 |
|---|
| Vehicle class designator | PC |
|---|
| Tire location | All-Position Tire |
|---|
| Tire diameter | 17 in |
|---|
| Tire type | Passenger Car Tires |
|---|
| Model | Roadian HTX RH5 13131NXK |
|---|
| Maximum inflation pressure | 51 psi |
|---|
| Tire aspect ratio | 65 |
|---|
Specifications are as published by the manufacturer. Please confirm the size against the placard on your vehicle before ordering.
